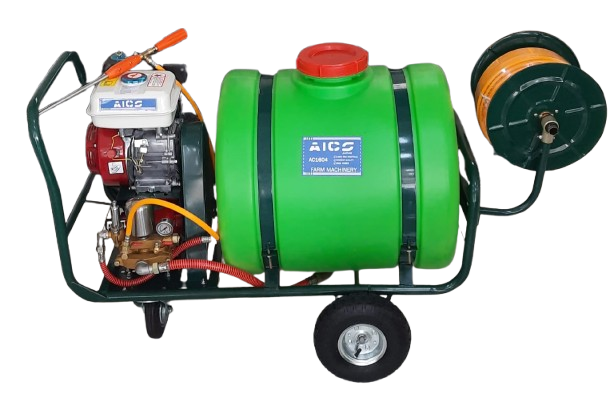

160litres AICO Japan Trolley Sprayer

An agricultural trolley sprayer is a portable spraying machine mounted on a wheeled trolley used by farmers to apply pesticides, herbicides, fungicides, fertilizers, and disinfectants to crops. It is designed to make spraying easier by allowing the operator to push or pull the sprayer instead of carrying it on the back, which reduces fatigue and increases efficiency.

Main Components

Tank (Reservoir)

Usually made of plastic or stainless steel.

Holds the chemical solution to be sprayed.

Typical capacity ranges from 16 to 100 liters depending on the model.

Pump System

Can be manual, battery-powered, or motorized.

Generates pressure to push the liquid through the hose and nozzle.

Trolley Frame and Wheels

A metal frame with two or four wheels for easy movement across the farm.

Supports the tank and pump.

Hose and Spray Lance

A flexible hose connected to a spray gun or lance.

Allows the operator to direct the spray onto plants.

Nozzle

Controls the spray pattern and droplet size.

Different nozzles are used for different crops and chemicals.

How It Works

The farmer fills the tank with a mixture of water and agrochemicals.

The pump creates pressure inside the sprayer.

The liquid flows through the hose and spray lance.

The nozzle disperses the liquid as fine droplets over the crops.

Advantages

Reduces operator fatigue compared to backpack sprayers.

Larger tank capacity allows spraying larger areas.

Easy movement due to the trolley wheels.

Better pressure control and spray coverage.
