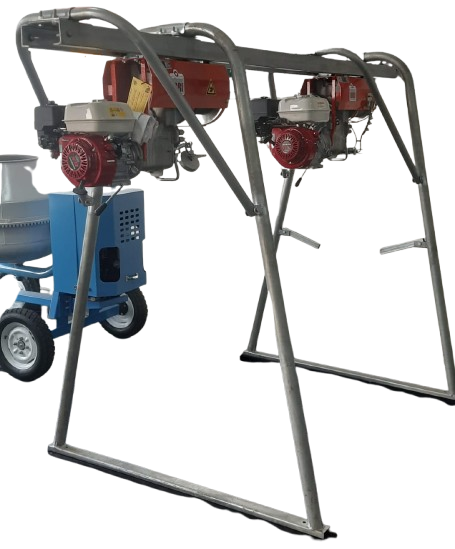

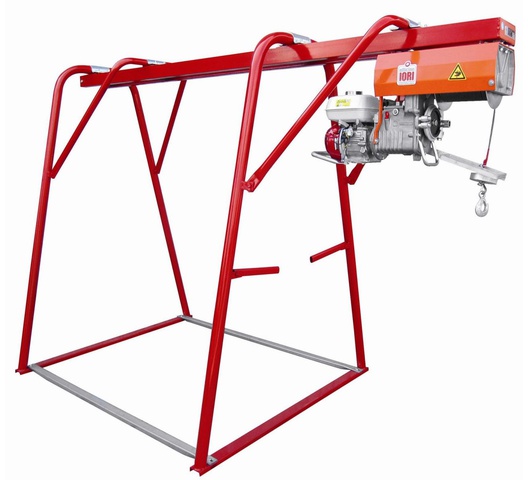

1Tone Concrete Hoist

A 1 Tone Concrete Hoist typically consists of a steel frame tower, electric motor, lifting drum, wire rope, and material bucket or cage. The hoist uses an electric or mechanical system to lift heavy loads vertically, improving efficiency and reducing manual labor on construction sites.

Main components of the machine include;

Electric Motor: Provides power to lift loads.

Gearbox & Drum: Controls the winding and unwinding of the wire rope.

Wire Rope / Cable: Used to lift and lower the load.

Material Bucket / Cage: Holds concrete or materials.

Steel Tower Frame: Supports the hoisting system and guides movement.

Control System: Allows the operator to safely control lifting and lowering.

Key Features;

Load Capacity: 1000 kg (1 tone)

Lifting Height: Usually 20–60 meters depending on tower height

Motor Power:  7.5 kW

Lifting Speed: Between 20–30 meters per minute

Common Uses;

Lifting concrete buckets to upper floors

Transporting construction materials like cement bags, sand, bricks, and steel

Supporting high-rise and multi-storey construction

Advantages;

Reduces manual labor and time

Improves construction productivity

Ensures safer vertical material transport

Suitable for medium to heavy construction loads

Safety features include;

Overload protection

Emergency stop switch

Limit switches to prevent over-hoisting

Braking system to prevent sudden drops
